Model  BV-E-Class 53'' x 103'' (135 x 262cm) all options

Vacuum Forming Machinery - Heavy Gauge Deep Draw Thermoforming

Belovac's line of structural vacuum forming equipment offers a simplistic approach to a big problem. All E-class models are engineered with the highest quality materials and workmanship with the emphasis on ease of operation and equipment longevity. This economical alternative to full auto systems offers the same vacuum forming machine capabilities without the down time issues related to automated systems.


For those large difficult plastic parts This vacuum forming machinery is typically used for the molding of larger structural Components such as- bath tubs –spas- motor home interiors and exteriors- limo components - auto side panels- industrial cases-shipping cases –acrylic sky lights- Air plane interiors - commercial signs - truck liners Recommended plastic gauge 3/8" (.95cm) thick --ABS / polycarbonate / kydex / poly propylene / Acrylic Styrene / PVC
This E class vacuum forming machine has a usable forming Area of 48'' x 96'' (122 x 244cm) for custom sizes, Contact your BELOVAC customer representative.
First Second Third


Download Brochure



Belovac Large E Class With PLC Heat Control and Pnuematic Clamping:

Belovac Custom 9' by 13' Vacuum Forming Machine .250 Acrylic Shell Sign Video:

Belovac Machine Vacuum Forming Large .180 ABS Federal Reserve Sign Video:

MODEL BV E-CLASS 53X103 - Upper and Lower Heat, standard depth of draw 22"
Manual Deep Draw

Equipment Specifications:

  • Sheet size 53" x 103" (Custom sizes available at request)
  • Depth of draw 22 inches
  • Fully adjustable material clamping
  • Tooling table: 3 1/4" (8cm) Pneumatic drive cylinder 300lb (136kg) seal pressure with adjustable slotted track for rapid tool mounting
  • Solid state programmable heat timing unit, coupled with programmable percentage control unit
  • Heater Panel: 80,000 watts infared radiant panel, with size-down option
  • Vacuum Pump: High volume, Hi-vacuum pump, Onboard 20 Gallon surge tank
  • Construction: Heavy wall 5" tubular frame

  • Recommended for plastics polycarbonate - Acrylic - ABS - PVC - PET - Poly styrene- kydex - Poly propylene
  • Plastic gauges up to 3/8"

    • Electric Requirements:
  • Power requirement: 240 - 440 three phase
MODEL BV E-CLASS 53X103 - Depth of Draw option upgrade 32"
Upper and Lower Heat, Upper and Lower Tooling Table
Manual Deep Draw
MODEL BV E-CLASS 53X103 - Upper and Lower Heat, Upper and Lower Tooling Table
Manual Deep Draw
  • MODEL BV E-CLASS R.O. 53X103
  • Rolling Upper Heat
  • Economical Shipping Worldwide
  • Features: Removable Rear Oven Track for long distance transport
  • Recommended for: Deep draw Forming of bath Tubs, Spas, and Structural Components.
Manual Deep Draw
Optional and Standard Vacuum Forming Machine Features

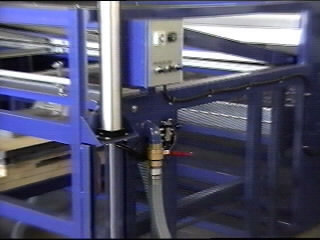

Standard: Heat percentage control Option: PLC Heat Multi-Zone Control
image3 image4

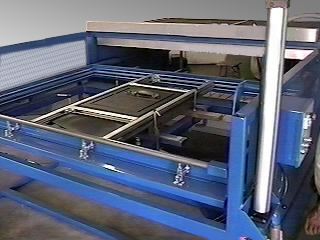

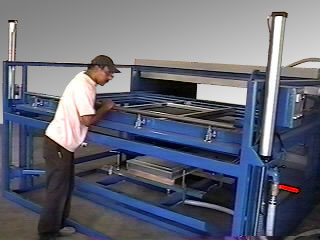

Adjustable Power Strut Plastic Clamping Operator opening clamping bar

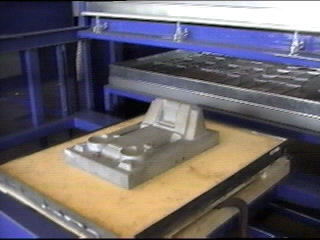

Tooling prior to forming operation Formed  plastic part 1/4" (.64cm) ABS
image image

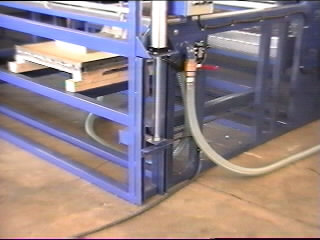

Tooling table dual cylinder spur and rack guided 32'' (81cm) depth of draw
image image

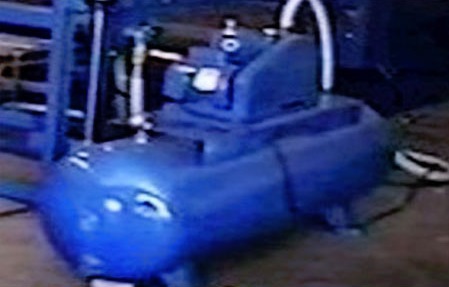

Vacuum system  80 gal (303L) -150 gal (568L) - 200 gal (757L) surge tank fit with 1/2/3 HP vacuum pump Pneumatic adjustable material clamping
image image

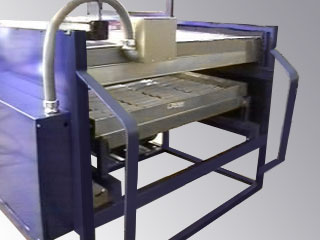

Lower Heat Ceramic Option
image image
